24V 70Ah Lithium iron Battery（LiFePO4）--GuangDong NPP New Energy Co., Ltd.<br />

24V 70Ah Lithium iron Battery（LiFePO4）: 2018-09-12

General Features
- Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
- Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
- Wider Temperature Range: -20°C~60°C
- Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
- Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact,overcharging or short circuit situation.
Typical Applications
- Electric vehicles, electric bike
- Solar/wind energy storage system
- Telecommunication
- Medical equipment
- Lighting
- Small medical equipment and portable equipment

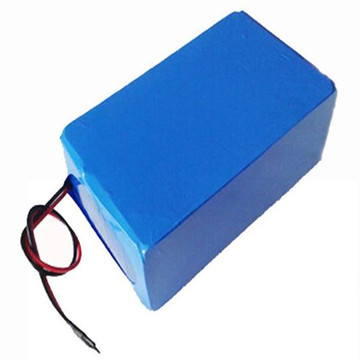

24V 70Ah Lithium iron Battery（LiFePO4）

Detailed datasheet download

Cell	Model		26650-3.3Ah
	Capacity		3.3 Ah
	Rated Voltage		3.2 V
	Internal Resistance		≤20 mΩ
	Combination Standard		A. Capacity Difference≤1%
			B. Resistance()=1～2mΩ
			C. Current-maintaining Ability≥90%
			D. Voltage3.2～3.3V
	Combination Method		8S23P
Pile Index	Rated Capacity		70Ah
	Minimal Capacity		70Ah
	Nominal Voltage		25.6V
	Max. Charge Voltage		29.2V
	Discharge cut-off voltage		18.4V
	Charge Current		15A
	Working Current		30A
	Output and Input		P+(red) / P-(black)
	Weight		~14.1Kg
	Dimension （L×W×H）		320×215×145mm
	Charge Method	Standard	10.0A×7hrs
		Quick	20.0A×3.0hrs.
	Operating Temperature	Charge	-10℃～65℃
		Discharge	-20℃～70℃
